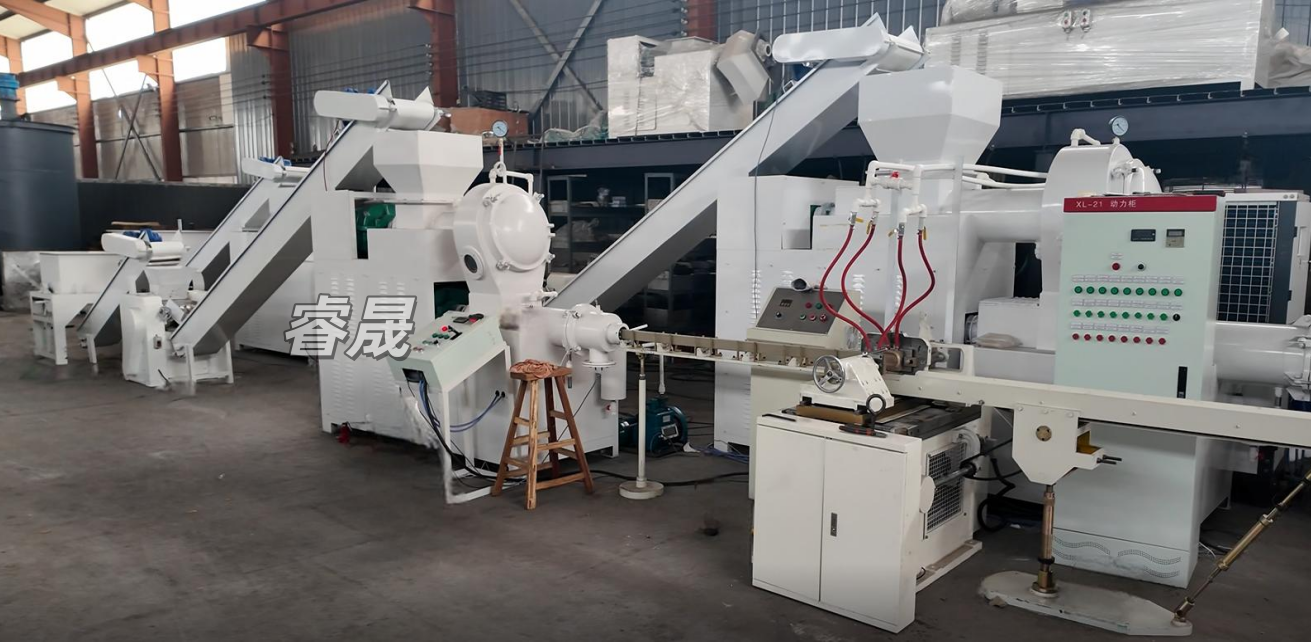

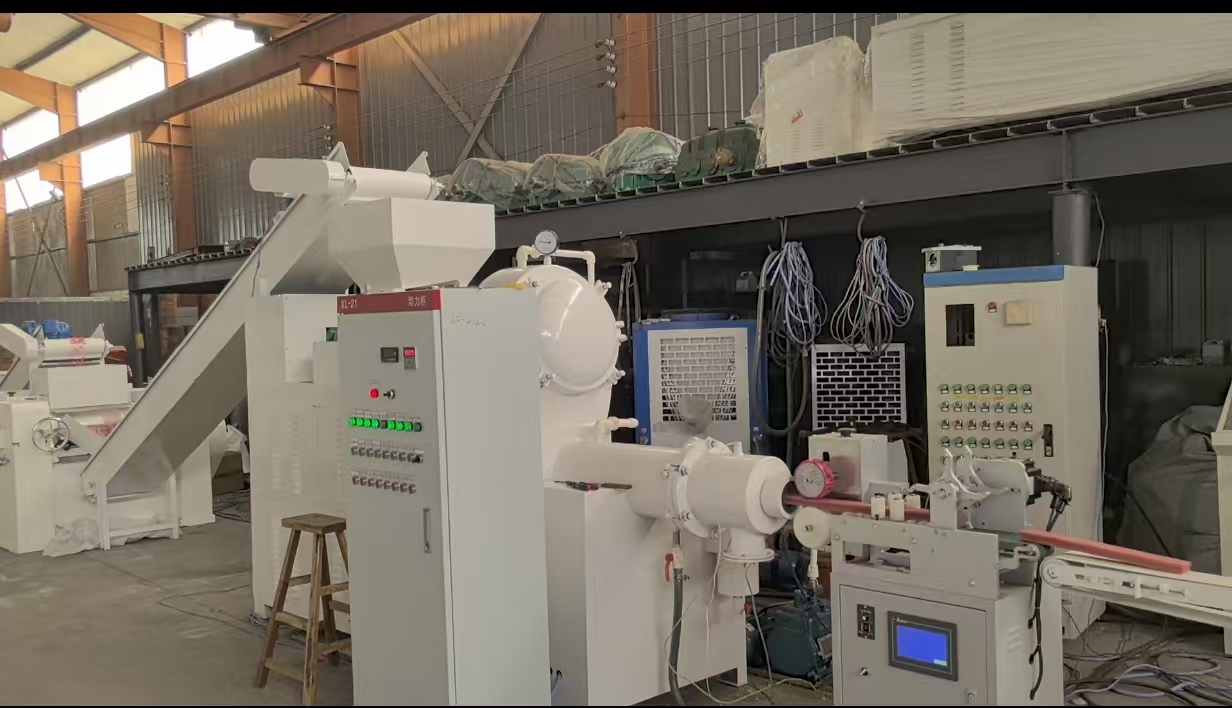

1. toliet soap making machine capacity: 100-300 kg/h.
2. Materials: soap noodle (soap grains), pigment, fragrance.
3. Workshop: above 50 m2 , L: 22 m, W: 8 m, H: 3.5 m, including operating space, excluding packing machine.
4. Power: 25.7 kW, 380 V, 50 HZ. 5. Staff: 6-8 persons
production process：

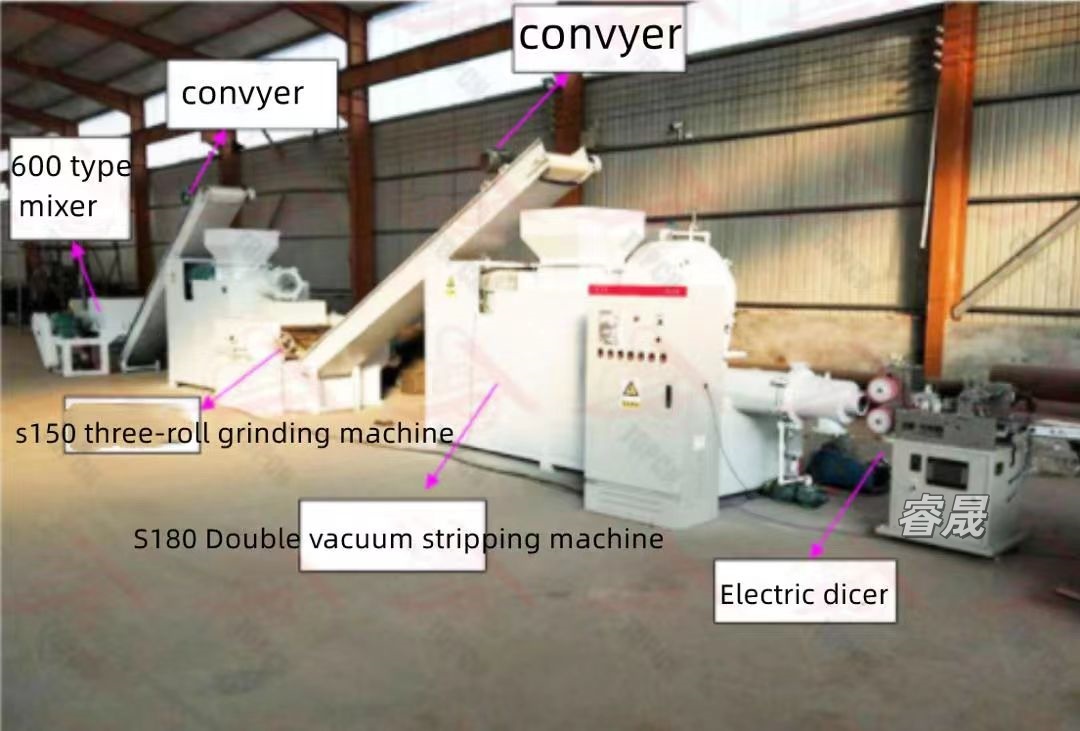

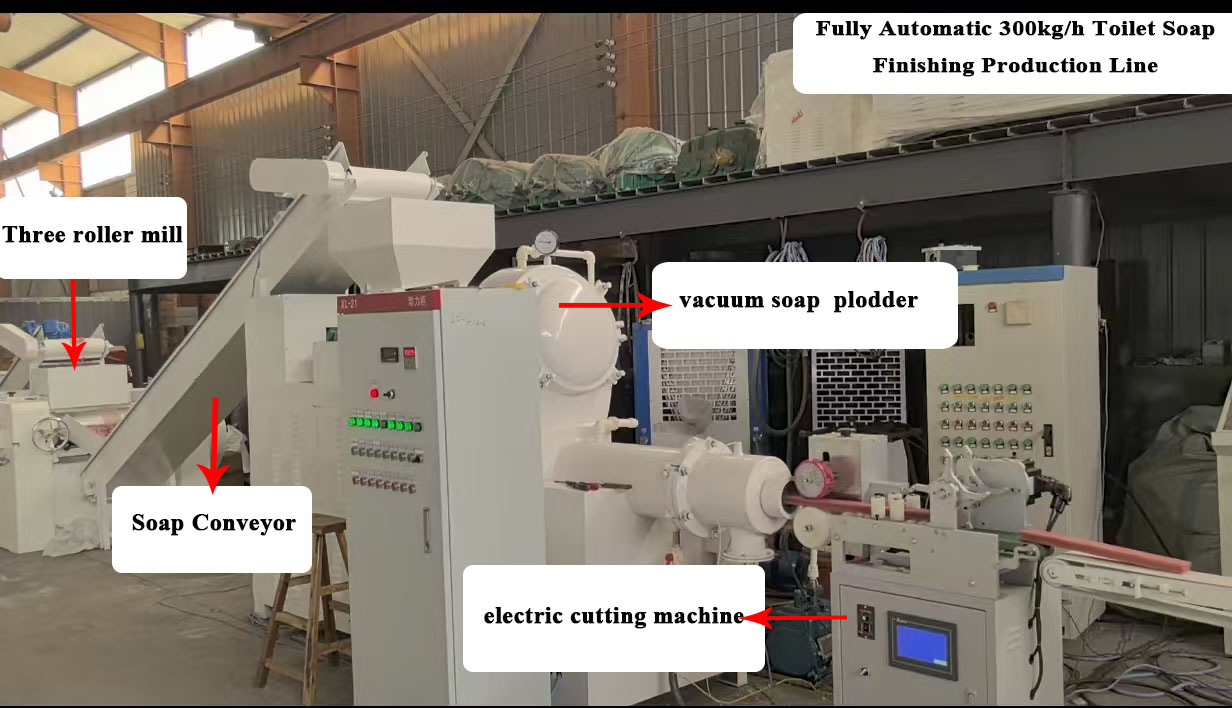

Mixer——Three roller mill——Plodder——Cut and Stamp
Production Description:

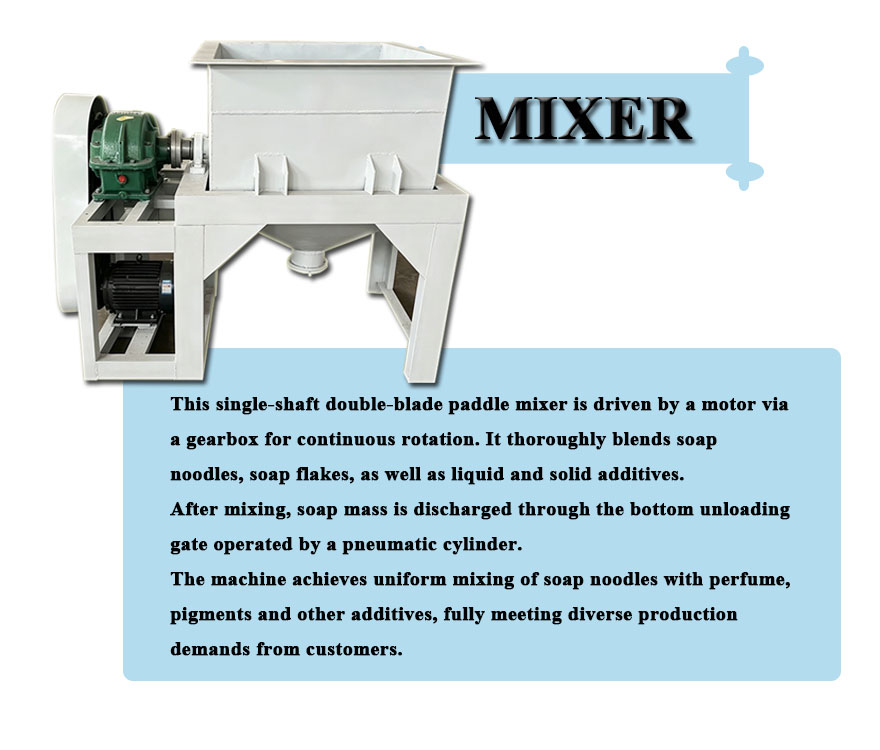

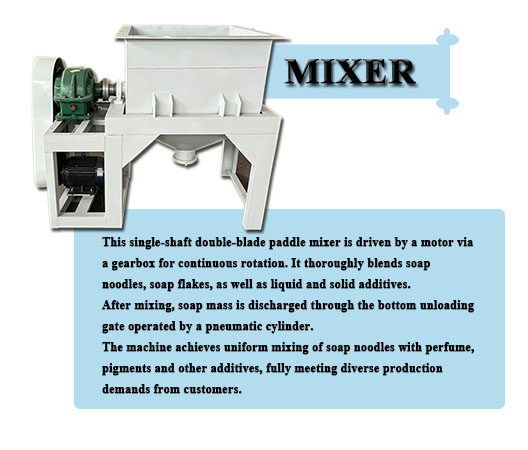

| equipment name | Mixer |
| function |
stir and mix all kinds of raw materials for the production of soap and transparent soap fully and evenly to refine the granulation, and completely mix all kinds of auxiliary materials, additives and essence into the granulation to meet the requirements of the formula. |
| Output | 300kg/h |
| Motor power |
5.5kw/h |
| overall dimension | 1400*830*1050mm |
| weight | 450kg |

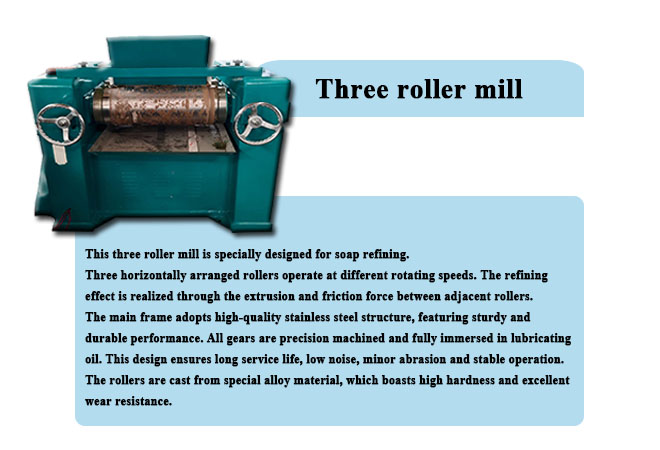

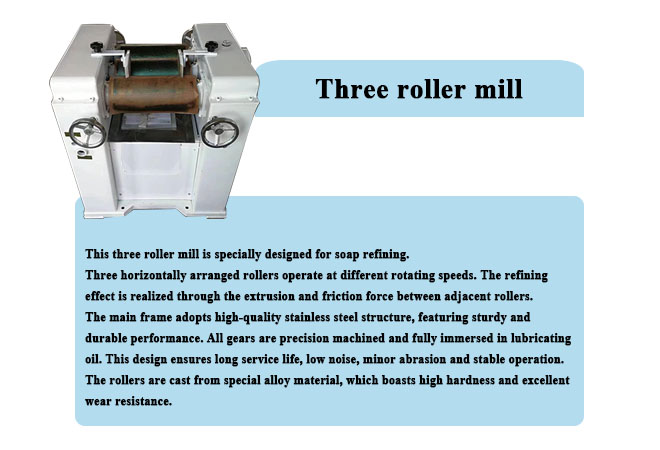

| equipment model | S300 |
| function | grind the mixed soap raw materials flaky |
| roller diameter | 150mm |
| working face length | 300mm |
| motor power | 2.2kw |
| overall dimension | 820*200*920mm |
| weight | 500kg |

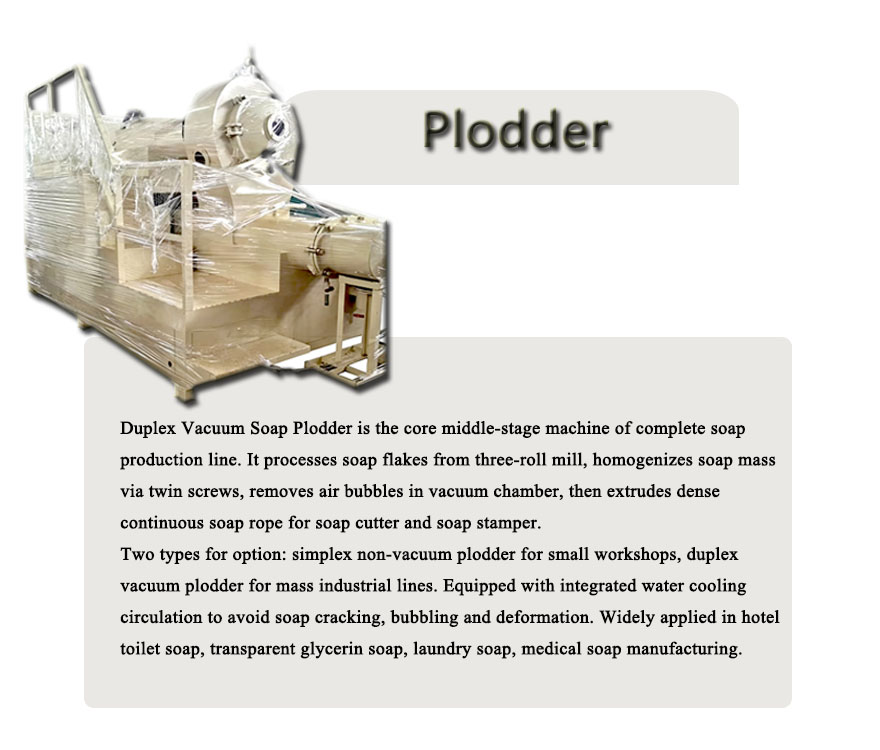

| equipment model | 300 |
| function |
true test of the ground soap particles empty, refined and extruded, changing the shape of soap body It is arranged neatly for strip forming |
| capacity | 300kg/h |
|
motor power |
5.5kW, 7.5kW speed regulation |
| overall dimension | 2860*880*2220mm |
| weight | 1320kg |

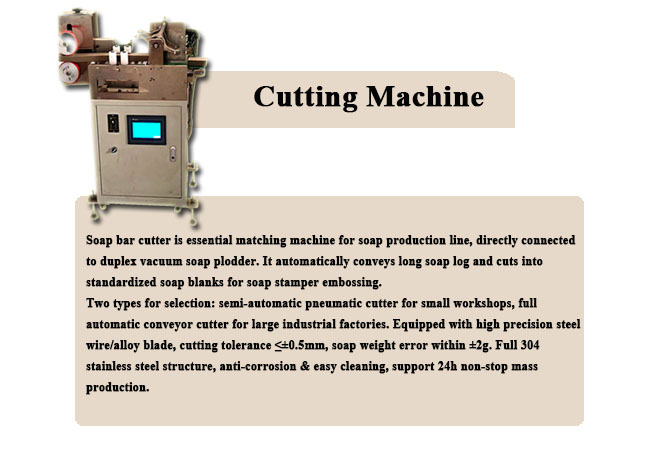

| equipment model | GY40 |
| function | cut the soap block into laundry soap |
| production capacity |
he cutting speed is determined by the extrusion speed of the layering machine output speed determination |
| motor power | 1.5kw |
| overall dimension | 850x500x1100mm |
| weight | 120kg |

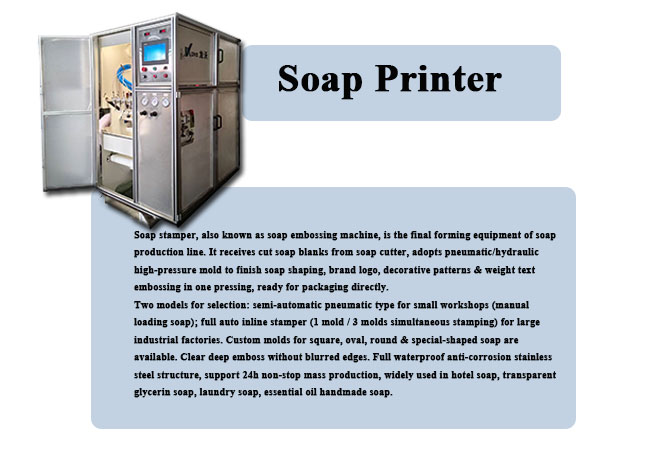

| equipment model | 120 |
| overall dimension | 1200*1000*1200mm |
| motor power | 2.2kw |
| equipment weight | 1250kg |
Shijiazhuang Ruisheng Machinery Manufacturing Co., Ltd was established in 1992, who has more than 30 years professional experience in soap machinery manufacturing. It has become a specialized production manufacturer that integrates scientific research, production processing, installation, and service. The main products include soap noodle vacuum dryer, soap noodle pelletizer, soap material mixer, soap material grinding machine, duplex vacuum plodder, soap stamping machine, cutting machine, conveyors and the machinery related to transparent soap production line, laundry soap production and toilet soap production line....[ read more ]
